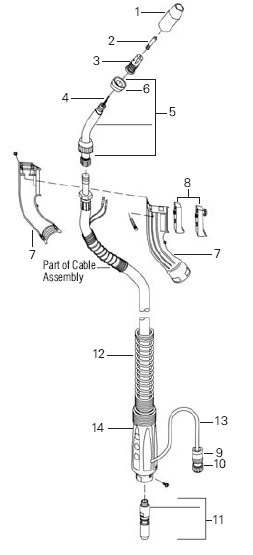

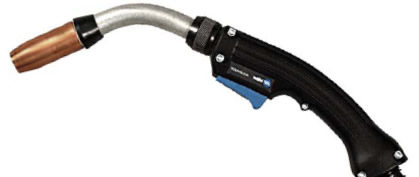

Roughneck |
| |
 HAVA SOĞUTMALI |
| 300 - 400 - 500 AMP |
| 3MTR / 4MTR / 5 MTR |
| |
 |
 |
| No |
Parça İsmi |
| 01 |
Nozzle, scr type copper 5/8 in orifice |
| |
Nozzle, scr type copper 5/8 in orifice heavy-duty |
| 02 |
Tip, contact,.045 in (1.2 mm) heavy-duty FastTip |
| |
Tip, contact,.045 in (1.2 mm) heavy-duty FastTip |
| |
Tip, contact, 1/16 in (1.6 mm) heavy-duty FastTip |
| |
Tip, contact, 1/16 in (1.6 mm) heavy-duty FastTip |
| 03 |
Diffuser, gas 1/8 in tip recess- for standard and heavy-duty FastTip |
| 04 |
Lineer, monocoil.023-.030 wire x 15 ft round wound |
| |
Lineer, monocoil.035-.045 wire x 15 ft round wound |
| |
Lineer, monocoil.052-1/16 wire x 15 ft round wound |
| |
Lineer, monocoil 1/16-.078 wire x 15 ft flat wound |
| |
Lineer, monocoil 5/64-3/32 wire x 15 ft flat wound |
| |
Lineer, monocoil 7/64-1/8 wire x 15 ft flat wound |
| |
Lineer, monocoil 3/64-1/16 wire x 15 ft aluminium wires |
| 05 |
Gooseneck, jacketed 4.5 in/50° wrench swivel (C-30/C-40)(includes) |
| |
Gooseneck, jacketed 6 in/50° wrench swivel (C-50)(includes) |
| |
Gooseneck, jacketed 8 in/50° wrench swivel (C-60)(includes) |
| |
Gooseneck, jacketed 6 in straight (optional for C-30/C-40/C50/C60)(includes) |
| 06 |
Insulator, rubber |
| 07 |
Handle, small pair flared P style (C-30/C-40 includes) |
| |
Handle, large pair (C-50/C-60 includes) |
| |
Screw, M3x11 (for #199 630 C-30/C-40 Handle only) |
| |
Nut, M3 Hex (for #199 630 C-30/C-40 Handle only) |
| |
Screw, M4x18 |
| |
Nut, M4 square |
| |
Label, gun handle Miller Roughneck |
| 08 |
Swich, blue trigger |
| 09 |
Conn, circ cpc clamp str rlf size 11.453 OD |
| 10 |
Housing plug + pins (service kit) |
| 11 |
Adapter, Miller power pin (includes) |
| 12 |
Cable Strain Relief 2&3 (300 Amp) |
| |
Strain Relief Assy-Contact Bernard (400,500,600 Amp) |
| 13 |
Electrical Plug-Non D/S |
| 14 |
Strain Relief, Rear (works on all Amp guns) |
|

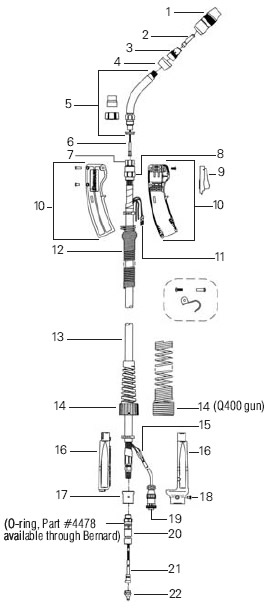

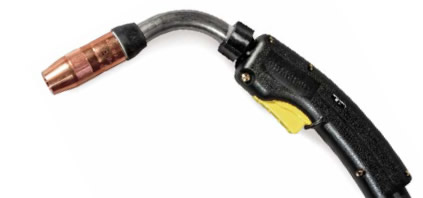

Q Guns |
| |
| HAVA SOĞUTMALI |
| 300 - 400 - 500AMP |
| 3MTR / 4MTR / 5 MTR |
| |
 |
 |
| No |
Parça İsmi |
| 01 |
Centerfire Nozzle |
| 02 |
Centerfire Contact Tip |
| 03 |
Centerfire Gas Diffuser, |
| 04 |
Insulator Cap |
| 05 |
Neck Assembly, 45°, 3.2 in radius |
| 06 |
Jump Liner |
| 07 |
Stay-Tite™ End Fitting |
| 08 |
Stay-Tite™ Cone Nut |
| |
Conduit Clamp |
| |
Jacket Clamp |
| 09 |
Trigger, standard |
| 10 |
Handle Kit (includes) |
| 11 |
Quick Disconnect Terminal |
| 12 |
Handle Spring |
| 13 |
Cable with Fittings, 10 ft (3 m) |
| |
Cable with Fittings, 15 ft (4.5 m) |
| 14 |
Strain Relief |
| 15 |
Butt Connector |
| 16 |
Rigid Strain Relief |
| 17 |
Adapter, Block |
| 18 |
Screw, strain relief |
| 19 |
Electrical Plug |
| 20 |
Miller Power Pin Assembly |
| 21 |
Liner,15 ft (4.5m), 3/64 (1.2 mm) wire (on Q400, Q4015AE8RM model) |
| |
Liner,15 ft (4.5m), 1/16 (1.6 mm) wire (on Q400, Q4015AE8SM model) |
| |
Liner,15 ft (4.5m), .035-.045 (0.9-1.2mm)wire(on Q400, Q4015AE8EM model) |
| 22 |
Power Pin Tip (.040-3/64 AL) (on Q400, Q4015AE8RM model) |
| |
Power Pin Tip (.052-1/16 AL) (on Q400, Q4015AE8SM model) |
| |
Power Pin Tip (.023-.045) (on Q400, Q4015AE8EM model) |
|
|
|
|
